| Cutting Diameter (DC) | 100 mm | Cutting Width Minimum (CWN) | 3.54 mm |
| Cutting Item Count (CICT) | 6 | Overall Length (OAL) | 4.1 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Master Insert Identification (MIID) | SSM4*N/SSS4*N |
| Cutting Depth Maximum (CDX) | 29 mm | Application | | Slot Milling | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 3.2 mm | Body Material | Steel |
| Cutting Width (CW) | 4.1 mm | Unit | M |
| Cutting Width Maximum (CWX) | 4.5 mm |
Product Features
| Family Description | Side cutter for thin slitting and cutting off | FamilyName | S/ASG |
| Remarks | For the combination of arbors / attachments, click on "More Info". | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.1910
Name

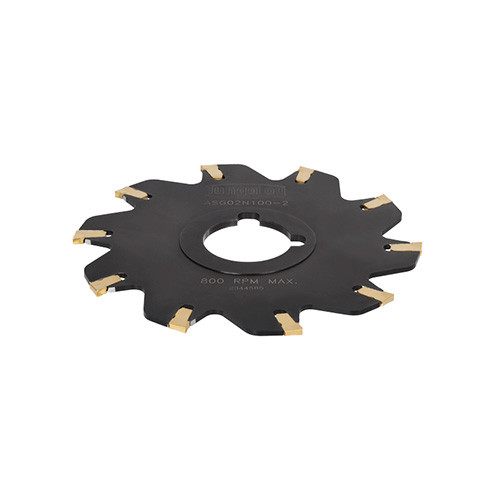

Disc w/Hole Indexable Slotting Cutters
FamilyName
S/ASG
BrandName
Tungaloy
Related Documentation

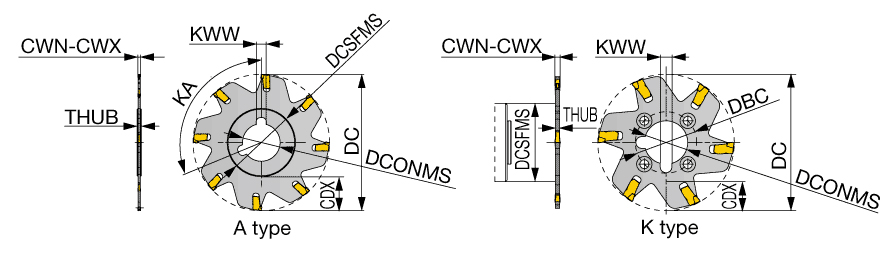

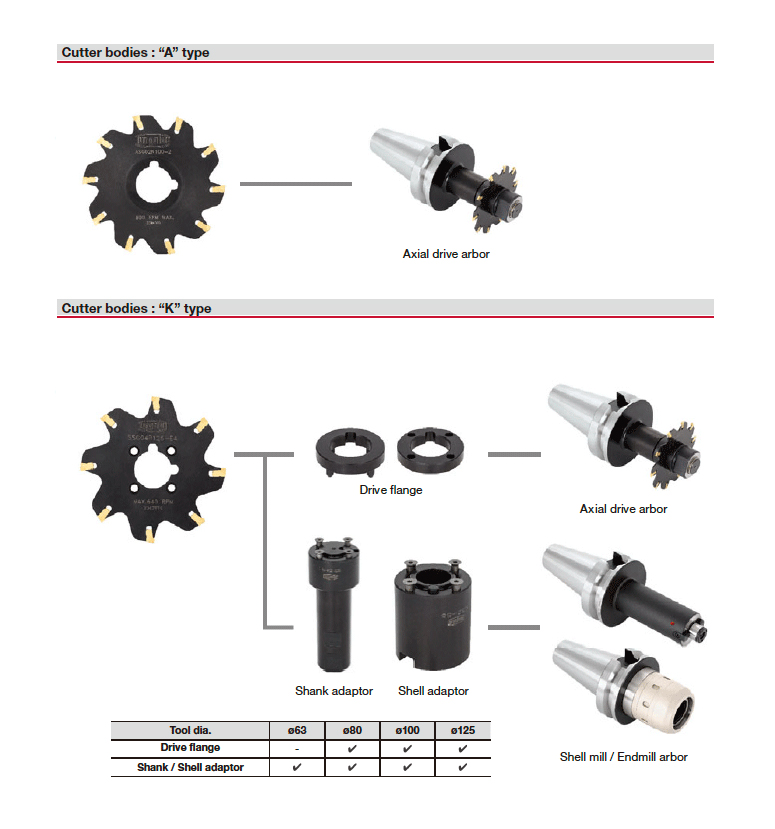

[Combination of arbors / attachments] @(1) A-type disk cutters are without clamping holes on the hub and can be mounted only by using axial drive arbors. @(2) K-type disk cutters are with clamping holes on the hub and can be mounted by using intermediate shanks or shell adaptors, making it possible to use endmills / shell mill arbors.
