DIN6987140ODP12X98

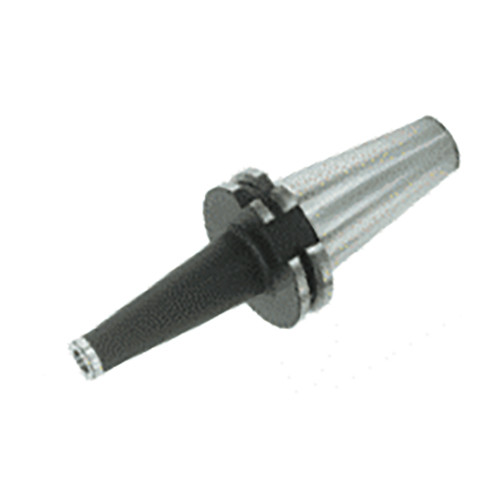

TungFlex modular tooling system with DIN69871 shank

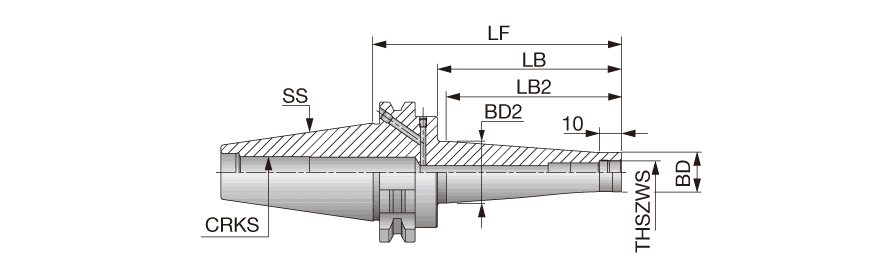

| Shank Size (SS) | 40. | Tool Type | DIN 69871 |
| Body Length (LB) | 78.9 mm | Overall Length (OAL) | 98 mm |
| Body Diameter (BD) | 21 mm | Measurement Type | Metric |
| Application | | Tapered shape interface | | Body Material | Steel |
| Connection Retention Knob Thread Size (CRKS) | M16 | Unit | M |
| Body Length_2 (LB_2) | 75 mm |
Product Features
| Family Description | TungFlex modular tooling system with DIN69871 shank | FamilyName | DIN69871-ODP (TungFlex) |
| COO | ITALY | BrandName | Tungaloy |
Shipping Info
Weight per item
1.1250
Name
Drill Chucks & Adapters
FamilyName
DIN69871-ODP (TungFlex)
BrandName
Tungaloy
