TID160R20-12

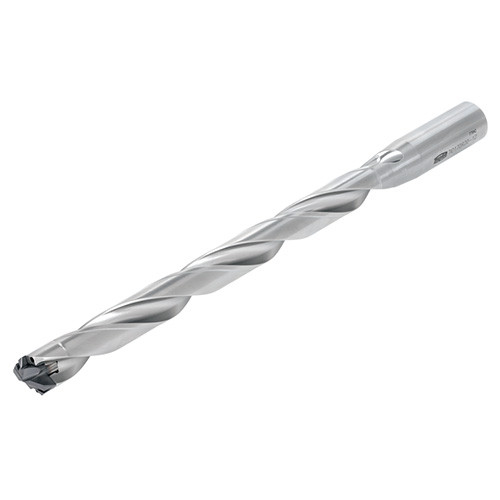

DrillMeister Indexable head drill with cylindrical shank

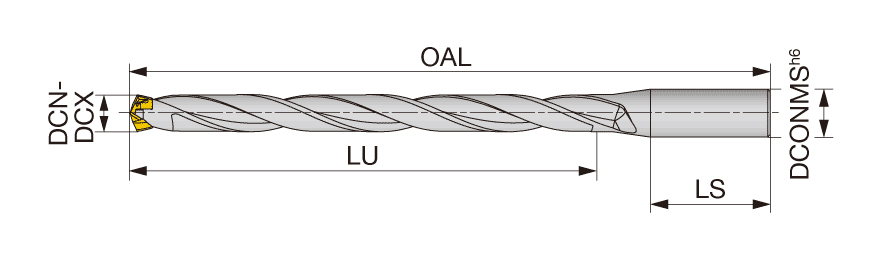

| Usable Length (LU) | 195 mm | Shank Length (LS) | 50 mm |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 16 | Master Insert Identification (MIID) | DMP160 |
| Cutting Diameter Minimum (DCN) | 16 mm | Point Length (PL) | 2.42 mm |
| Cutting Diameter Maximum (DCX) | 16.9 mm | Body Material | Steel |
| Overall Length (OAL) | 267.1 mm | Unit | M |
Product Features
| Family Description | DrillMeister Indexable head drill with cylindrical shank | COO | SOUTH KOREA |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Weight per item
0.3330
