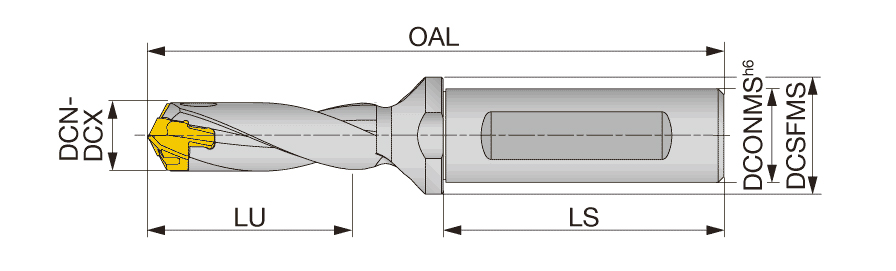

| Usable Length (LU) | 67 mm | Shank Length (LS) | 56 mm |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | DMP210 |
| Insert Seat Size Code (SSC) | 21 | Point Length (PL) | 3.18 mm |
| Cutting Diameter Minimum (DCN) | 21 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 21.9 mm | Flange Diameter (DF) | 32 mm |
| Overall Length (OAL) | 151.98 mm | Unit | M |
Product Features

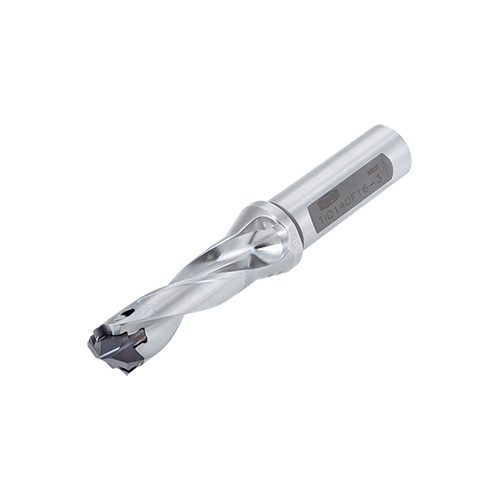

| Family Description | DrillMeister Indexable head drill with flanged shank | COO | JAPAN |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Weight per item
0.4120
