HSKA63SRKIN16X160

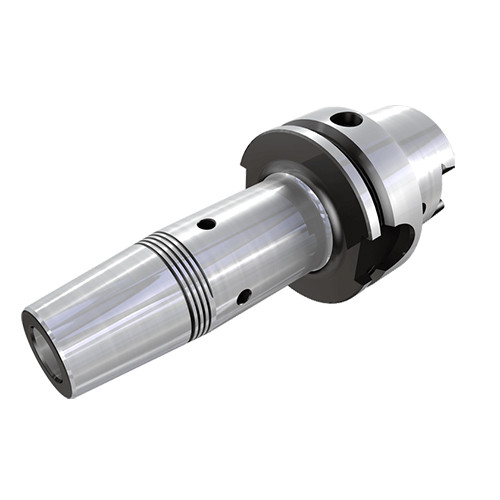

TungShrink thermal shrinking holder for carbide and HSS with HSK-A shank

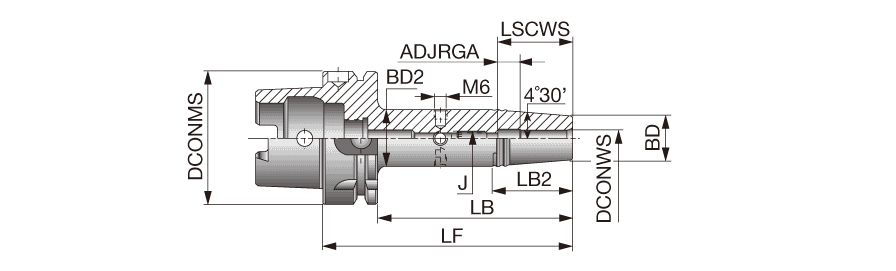

| Connection Diameter Machine Side (DCONMS) | 63 mm | Shank Type | Round |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Application | | Face contact interface | |
| Shank Size (SS) | 63. | Thread Designation Inside (THID) | M12 |
| Body Length (LB) | 134 mm | Measurement Type | Metric |
| Body Length_2 (LB_2) | 44 mm | Tool Type | HSK |
| Body Diameter (BD) | 27 mm | Body Material | Steel |
| Body Diameter_2 (BD_2) | 34 mm | Unit | M |
| Overall Length (OAL) | 160 mm |
Product Features
| Family Description | TungShrink thermal shrinking holder for carbide and HSS with HSK-A shank | FamilyName | HSK A-SRKIN (TungShrink) |
| Remarks | Use only inductive heating device for SRKIN holders. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
1.6500
Name
Shrink Fit Holders
FamilyName
HSK A-SRKIN (TungShrink)
BrandName
Tungaloy
