BT50SRKIN8X100CX

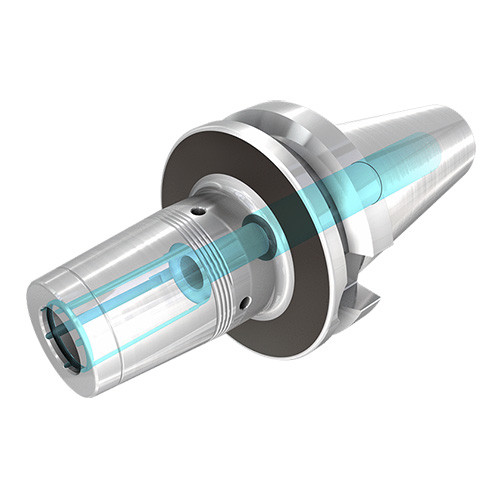

Thermal shrinking holder with BT MAS-403 form AD tapered shank, with coolant jet channels, for carbide, HSS and steel shanks

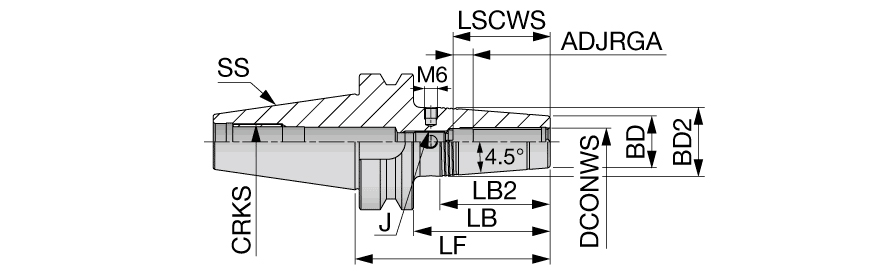

| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Application | | Tapered shape interface | |
| Shank Size (SS) | 50 | Thread Designation Inside (THID) | M6 |
| Body Length (LB) | 62 mm | Measurement Type | Metric |
| Body Length_2 (LB_2) | 38 mm | Tool Type | BT |
| Body Diameter (BD) | 21 mm | Body Material | Steel |
| Body Diameter_2 (BD_2) | 27 mm | Unit | M |
| Overall Length (OAL) | 100 mm |
Product Features
| Family Description | Thermal shrinking holder with BT MAS-403 form AD tapered shank, with coolant jet channels, for carbide, HSS and steel shanks | FamilyName | BT-SRKIN-CX |
| Remarks | Please use an induction heating unit for SRKIN holder. For the unit and shank dimensions, click on "More Info". Unbalance under 1 g x mm is not guaranteed. Always use a dedicated preset screw (PRESET CX M*X...) included in the package. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
Shrink Fit Holders
FamilyName
BT-SRKIN-CX
BrandName
Tungaloy
