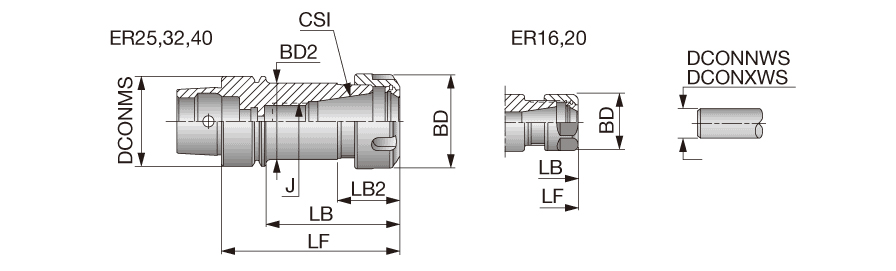

| Shank Size (SS) | HSK E 32 | Functional Length (LF) | 65 mm |
| Connection Size (CSI) | ER25 | Application | | Face contact interface | |
| Body Diameter (BD) | 42 mm | Tool Type | HSK |
| Body Diameter_3 (BD_3) | 25.8 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Length (LB) | 45 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 16 mm |
| Body Length_2 (LB_2) | 30 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Shank Length (LS) | 16 mm | Unit | M |
Product Features
| Family Description | ER collet chucks with HSK-E shank | FamilyName | HSK E-ER (collet chuck) |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
HSK E-ER (collet chuck)
BrandName
Tungaloy
