BT40FCER32X100

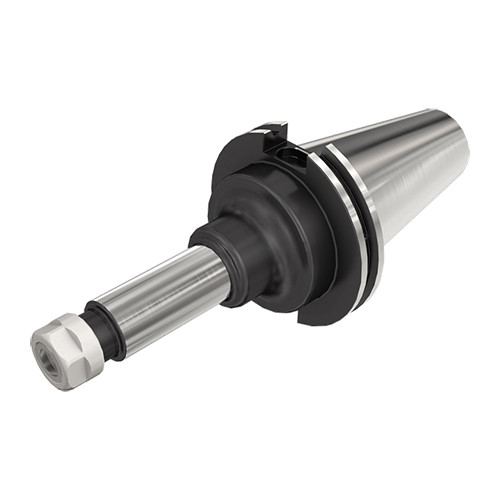

ER collet chuck holder with BT MAS-403 face contact AD tapered shank.

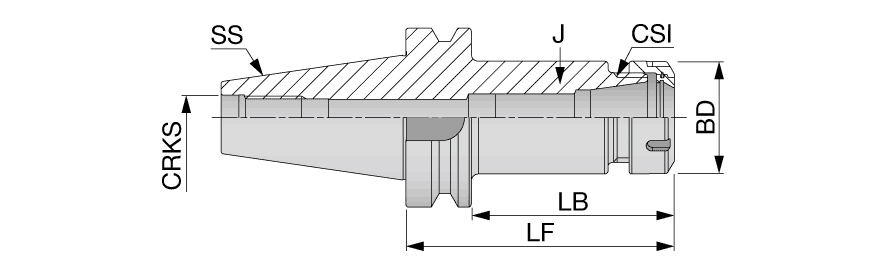

| Shank Size (SS) | BT40-FC | Tool Type | BT |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length (LB) | 74 mm | Measurement Type | Metric |
| Shank Length (LS) | 65.4 mm | Body Material | Steel |
| Functional Length (LF) | 100 mm | Unit | M |
| Application | | Tapered shape interface | |
Product Features
| Family Description | ER collet chuck holder with BT MAS-403 face contact AD tapered shank. | FamilyName | BT-FC-ER |
| COO | ITALY | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Collet Chucks
FamilyName
BT-FC-ER
BrandName
Tungaloy
