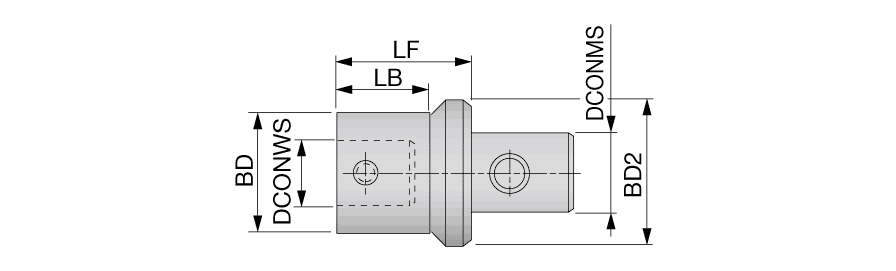

| Connection Diameter Machine Side (DCONMS) | 24 mm | Body Length (LB) | 48 mm |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Application | | PINZBOHR tools | |
| Functional Length (LF) | 58 mm | Measurement Type | Metric |
| Body Diameter (BD) | 22 mm | Body Material | Steel |
| Body Diameter_2 (BD_2) | 42 mm | Unit | M |
Product Features

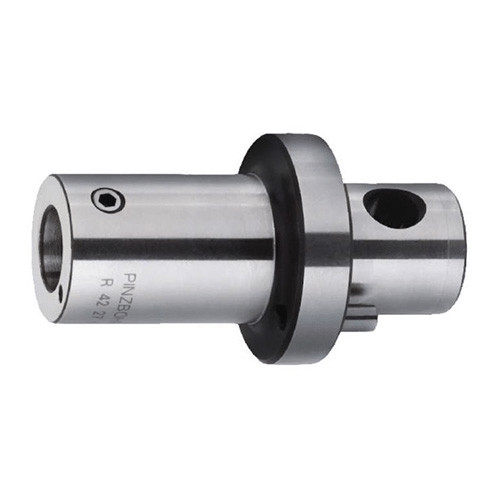

| Family Description | Adapters / Reducer for using small dia head on large size arbor. | COO | SPAIN |
| Remarks | PINZBOHR Boring System is a product of MYFHE,S.A. |
Shipping Info
Weight per item
0.3060
