| Application | | Ceramic and carbide insert | | Coating | TIN |

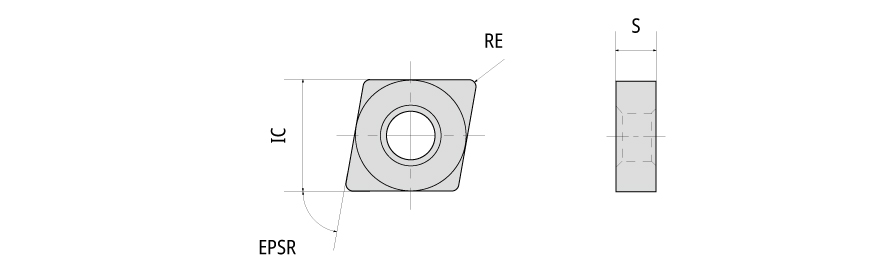

| Corner Radius (RE) | 1.2 mm | Grade | ZC7 |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 80 Degrees | Unit | M |
| Cutting Edge Material | Ceramic |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | CNGA-WL / wiper insert |
Shipping Info
Weight per item
0.0031
Name
Turning Indexable Inserts
FamilyName
CNGA-WL / wiper insert
BrandName
NTK
