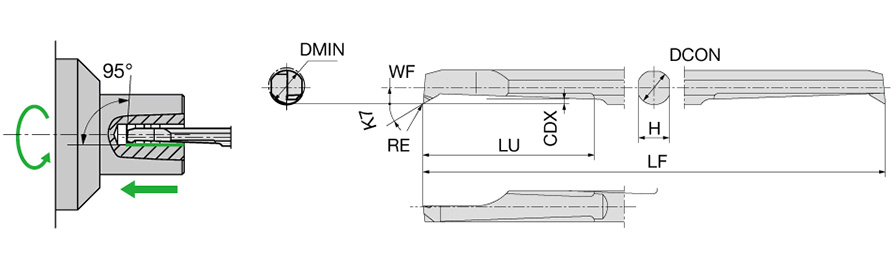

| Connection Diameter Machine Side (DCONMS) | 3.5 mm | Functional Width (WF) | 1.65 mm |
| Minimum Bore Diameter (DMIN) | 3.7 mm | Usable Length (LU) | 17.5 mm |
| Functional Length (LF) | 60 mm | Shank Height (H) | 3.2 mm |
| Coating | TiAlN | Body Material | Carbide |
| Grade | DT4 | Cutting Edge Material | Carbide |
| Application | | Inserts for miniature | | Measurement Type | Metric |
| Corner Radius (RE) | 0.15 mm | Unit | M |
| Cutting Depth Maximum (CDX) | 0.5 mm |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | SBFB-F Evacuates chips BACKWARD |
Shipping Info
Weight per item
0.0052
Name
Solid Boring Bars
FamilyName
SBFB-F Evacuates chips BACKWARD
BrandName
NTK Cutting Tools
