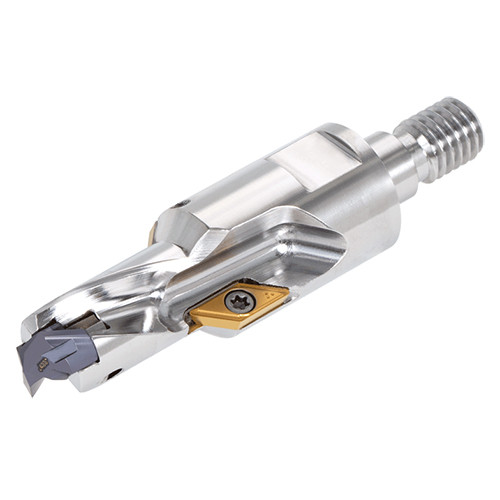

TID160L40A90M12
DrillMeister Modular body with chamfering insert, with TungFlex connection. Dedicated line up for pre-thread drilling of metric and UNF threads
| Application | | Chamfering | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 16 | Master Insert Identification (MIID) | DMP160 |

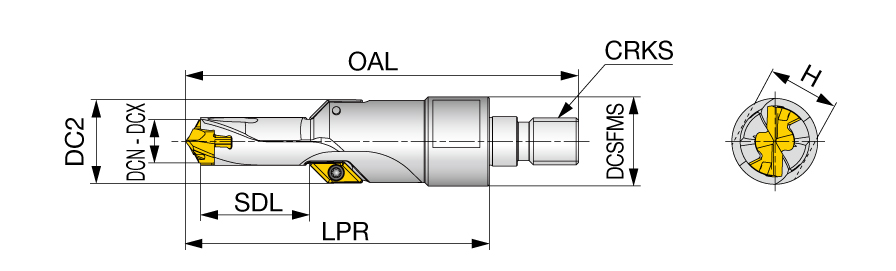

| Cutting Diameter Minimum (DCN) | 16 mm | Point Length (PL) | 2.42 mm |
| Cutting Diameter Maximum (DCX) | 16.9 mm | Body Material | Steel |
| Overall Length (OAL) | 107.42 mm | Flange Diameter (DF) | 23.5 mm |
| Shank Length (LS) | 22 mm | Unit | M |
Product Features
| Family Description | DrillMeister Modular body with chamfering insert, with TungFlex connection. Dedicated line up for pre-thread drilling of metric and UNF threads | COO | JAPAN |

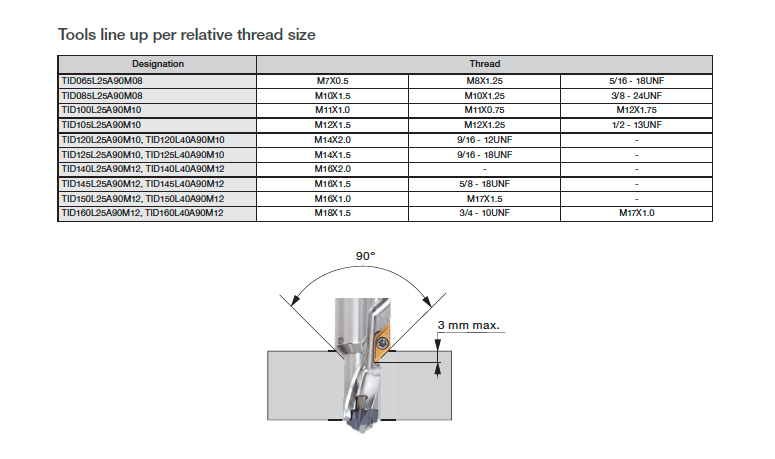

| Remarks | For tools line up per relative thread size, click on "More Info". |
Shipping Info
Weight per item
0.0000
