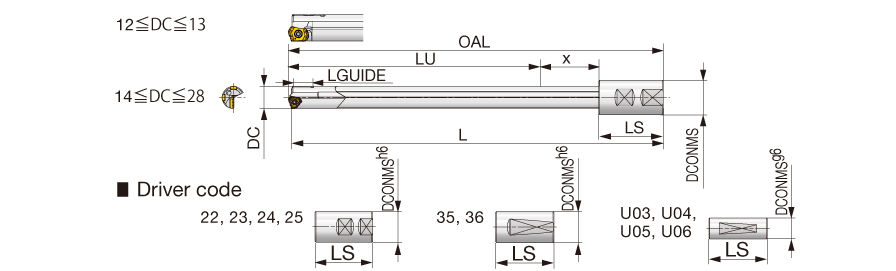

| Cutting Diameter (DC) | 14 mm | Cutting Diameter Minimum (DCN) | 14 mm |
| Usable Length (LU) | 711 mm | Cutting Diameter Maximum (DCX) | 14 mm |
| Application | | Gundrill | | Point Length (PL) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Measurement Type | Metric |
| Shank Length (LS) | 70 mm | Master Insert Identification (MIID) | TOHT070304R-NDJ |
| Functional Length (LF) | 730 mm | Body Material | Steel |
| Overall Length (OAL) | 802 mm | Unit | M |
Product Features

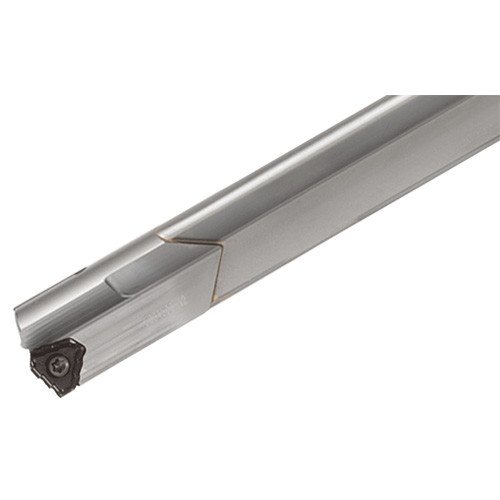

| Family Description | Drill body for gun drill machine | COO | JAPAN |

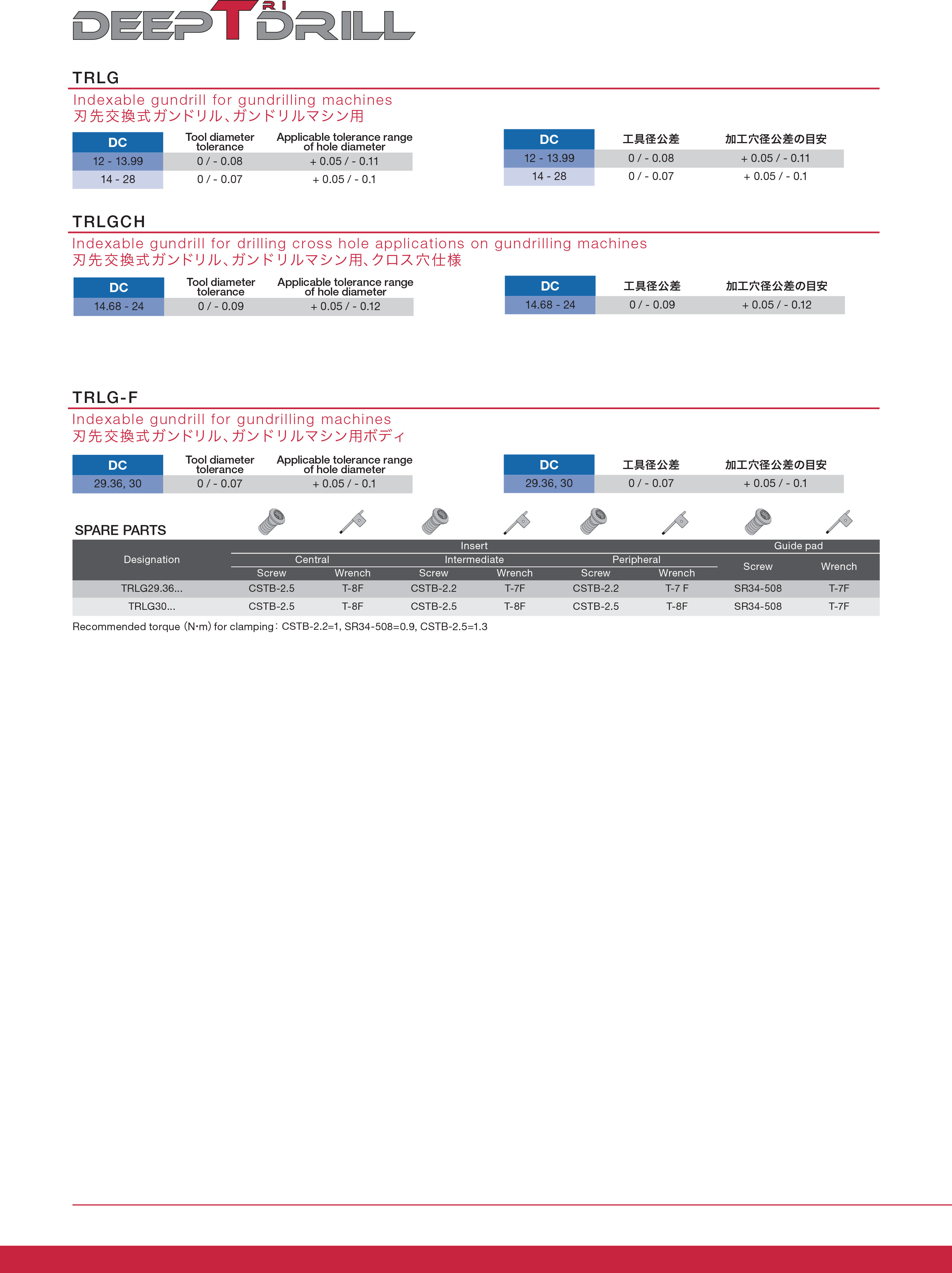

| Remarks | Tool diameter tolerance and applicable tolerance range of hole diameter, please refer to the "More Info". |
Shipping Info
Weight per item
0.9020
