| Drill Bit Size / Cutting Diameter (DC) | 8.5 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.5 mm | Cutting Edge Material | Carbide |
| Coating | TiAlSiCrN | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH9130 |
| Application | | General Drilling | | Measurement Type | Metric |

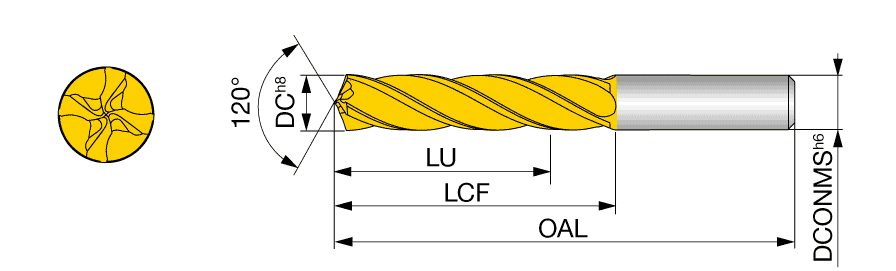

| Connection Diameter Machine Side (DCONMS) | 9 mm | Usable Length (LU) | 34 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 93 mm |
| Point Angle (SIG) | 120 Degrees | Body Material | Carbide |
| Point Length (PL) | 1.8 mm | Unit | M |
Product Features
| Family Description | Solid4FlutesDrill Solid drill without coolant hole, 4 flutes, DIN shank, L/D = 3 | COO | JAPAN |
Shipping Info
Weight per item
0.0000
