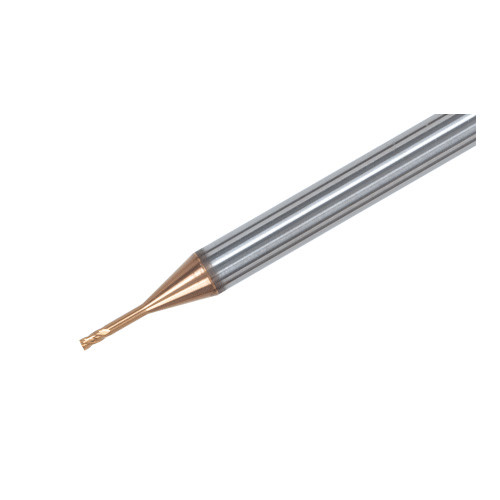

TEC015A4-025/06C4H-50 AH3005
4 flute endmill,30 deg helix angle,Long neck type,for hardened steel
| Cutting Diameter (DC) | 1.5 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Grade | AH3005 |
| Depth of Cut Maximum (APMX) | 2.5 mm | Neck Diameter (DN) | 1.45 mm |
| Overall Length (OAL) | 50 mm | Head Length (LH) | 6 mm |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square | Unit | M |
Product Features
| Family Description | 4 flute endmill,30 deg helix angle,Long neck type,for hardened steel | FamilyName | TEC-A4H |
| COO | SOUTH KOREA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
TEC-A4H
BrandName
Tungaloy
